Product details:

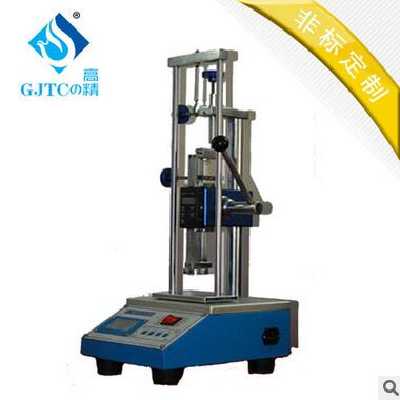

SYGJ-SFT01-A microcomputer testing machine is a special instrument to test the tensile spring, deformation and load characteristics of the compression spring. For tensile, compression spring work load in a certain working length of the test, but also can be used for rubber elastic reed elastic load testing device.

SYGJ-SFT01-A micro spring testing machine adopts the embedded microcomputer technology, with high speed and high precision ADC power collector. In the power collection without any like electronic, push pull average filtering algorithm to improve the accuracy, but directly reveals its true value. So, the real-time power determines the value of a higher degree of force the reaction force value, data analysis with the software faster, if still can do attitude curve.

1 using LCD liquid display and embedded microcomputer technology

2 high speed and high precision ADC power acquisition system is used to deal with the force value, and the software can be used to analyze the dynamic curve.

3 force value display mode: peak value, peak value is automatically lifted, real-time value can be set to three

4 with the upper and lower limit of the value of the function, can be based on the comparison of the results suggested that PASS., NG

5 has three units: N, KGF, IBF

10 with 6 groups according to the preservation of the function, and can save the 10 sets of data statistics, the maximum value, the minimum value, the difference, the average.

7 with boot password change function

8 software has a more accurate function

SYGJ technical parameters:

Load range

Kgf

Five

10kg

50kg

Load display resolution

Kgf

Zero point zero zero one

Zero point zero zero two

Zero Point Zero Zero Five

Test bit single

Kgf, N, IBF optional

Maximum length of displacement digital display

95mm

Length / Travel Display decomposition rate

0.01mm

Compression plate

Mm 100*80

Draw hook

On the two

Power Supply

220VAC
