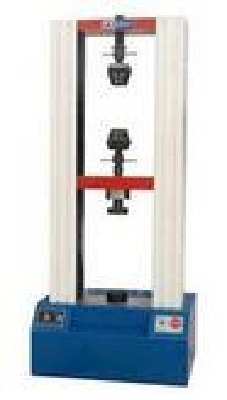

SYGJ technical parameters:

Load capacity:

20KN

Unit switch:

Kg, Lb, kN,

Load accuracy:

0.5%/ 1%

Precision grade of testing machine:

Grade 0.5 /1

Load resolution:

1/500000 full range no

Rate accuracy

0.2%

Deformation measurement accuracy:

0.5%

Displacement velocity adjustment range:

0.01 ~ 500mm/min

Effective test stroke:

Travel 700mm

Fixture fixed sample

Special clamp

Volume (H * D * W, about):

600 * 400 * 1800mm

Power Supply：

1 13, AC 220V/1200W

Noise:

< 70 dB

SYGJ material introduction:

Accessories name

Model specification

Number

Origin / remark

Host

SYGJ-MFMT02

1 Taiwan

Shenzhen SYGJ

Load sensor

20kN level 0.2

Maximum capacity output ratio: 2m/v 0.025%

Non linear: within 0.5%R.O

Linear deviation: less than 0.5%R.O

Reproducibility: within 0.1%R.O

1

AC/ force transmission in the United States

dynamic system

servo motor

1

Taiwan Donlim / Matsushita servo

Servo driver

Wire rod

Precision ball screw

1

Taiwan on silver

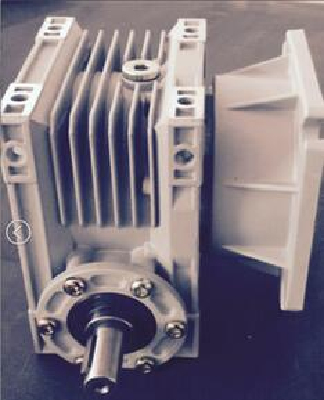

Reducer

Precision type

1

Taiwan

Bearing

4

Japan NSK

Control system

MY servo control system

1

Shenzhen SYGJ

(special hardware and software for testing machines)

XP Windows application software (Multi Standard vertebra)

computer system

Lenovo computer

A4 HP color ink jet printer

1

brand

Test item

Tensile, compression, and other mechanical properties test

1

In accordance with GB, JIS, ASTM, ISO, DIN and other standards

Attachment (clamp)

Special fixture for textile

1

Shenzhen SYGJ
