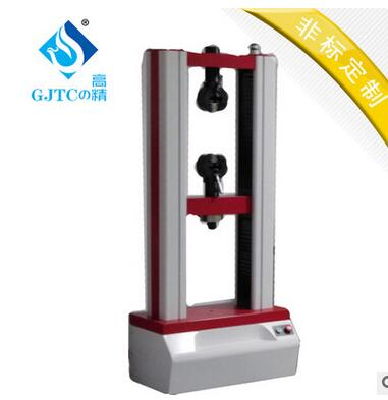

This machine is suitable for 2 tons and the following kinds of metal, nonmetal, composite materials, and its products for tensile, compression, bending, shearing, peeling and other mechanical properties of the conventional test and analysis.

Equipped with special test control software and clamping device, the parts can test its performance, according to GB, JIS, ASTM, DM, ISO, EN and other standards to determine the maximum value of the maximum test force

(minimum value / average), fracture stress, tensile strength, elongation, peel strength, peel strength and other parameters, accurate, reliable, reproducible and can carry out data rounding.

(GB8170) Fm, Rm, Rp, ReH, ReL, Re,, A, Z, E, and other mechanical properties, such as mechanical properties index and load deformation, stress strain curve, etc., are widely used in automotive electronics industry,

Aerospace, photoelectric LED screen industry, petroleum chemical industry, machinery manufacturing, ceramic, plastic pipe, metal, non-metallic materials and other industries is the enterprise,

It is an ideal equipment for the research of product testing and scientific research institutions.

Control card:

The machine adopts high performance control card, which ensures that the test machine can achieve constant velocity displacement and other parameters of the closed-loop control.

Electric machinery:

Servo motor, stable performance, reliable, with over current, over voltage, over speed, overload and other protective devices. Speed ratio up to 1:100000.

Standard:

Electrical control line with reference to international standards, in line with the national testing machine electrical standards, strong anti-interference ability, to ensure the stability of the controller, the accuracy of the experimental data.

Automatic shift:

According to the load automatically switch to the appropriate range, to ensure the accuracy of measurement data; to achieve a real sense of the physical zero, automatic gain adjustment, and test of force measurement of zero, calibration and disk, without any analog regulator, highly integrated control circuit

Save conditions:

The test control data and the sample condition can be made into a module, which is convenient for the batch test.

Automatic speed changing:

During the test, the speed of the moving beam can be changed automatically according to the preset program, but also can be changed manually;

Automatic calibration:

The system can automatically realize the calibration of indication accuracy;

Automatically save:

Test data and curves are automatically saved.

Process implementation:

Test process, measurement, display and analysis are completed by the computer;

Batch test:

The samples on the same parameters, one set after distal;

Test software:

Chinese WINDOWS interface, menu prompt, mouse operation

Display mode:

Data and curves are displayed dynamically with the test procedure;

Curve traversal:

After the completion of the test, the curve can be re analyzed, with the mouse can be found in the curve of the corresponding test data;

Curve selection:

Can be selected according to the needs of stress - strain, force - displacement, force - time, displacement - time curve for display and print;

Test report:

According to the user requirements of the format of the report and print; with network interface, data transmission, storage, printing

Recording and network transfer printing,

Can be connected with the enterprise internal local area network or Internet network.

Limit protection:

Two level limit protection with programmed control and mechanical;

Automatic stop:

After the specimen is broken, the moving beam is automatically stopped.

Overload protection:

When the load exceeds the maximum value of the 3-5%, the automatic stop;

Automatic and manual test results of the two models to automatically form a report, so that the data analysis process is simple.

SYGJ technical parameters:

Load capacity:

20KN

Unit switch:

Kg, Lb, kN,

Load accuracy:

0.5%/ 1%

Precision grade of testing machine:

Grade 0.5 /1

Load resolution:

1/500000 full range no

Rate accuracy

0.2%

Deformation measurement accuracy:

0.5%

Displacement velocity adjustment range:

0.01 ~ 500mm/min

Effective test stroke:

Travel 700mm

Fixture fixed sample

Special clamp

Volume (H * D * W, about):

600 * 400 * 1800mm

Power Supply：

1 13, AC 220V/1200W

Noise:

< 70 dB
